Noise & Vibration Monitoring Instruments

Noise & Vibration Monitoring Instruments | Teqroniqh Trading & Technical Services Co. WLL

Professional Sound and Vibration Measurement Solutions

Teqroniqh supplies a comprehensive range of professional noise and vibration monitoring instruments from Svantek, a globally recognized manufacturer of advanced acoustic and vibration measurement solutions. Our instruments deliver accurate, reliable data for environmental noise monitoring, occupational health, building and ground vibration studies, and regulatory compliance.

Precision Instruments Class 1 Certified Professional Solutions

Class 1 Sound Level Meter SV 971A

The SV 971A is a Class 1 Sound Level Meter and Sound Exposure Meter designed for professional acoustic measurements. It features an omnidirectional, pre-polarised microphone, providing a 120 dB range from 17 dBA Leq to 140 dB Peak in a single span. The device maintains IEC 61672-1 linearity from 24–137 dB LAeq over 5 Hz to 20 kHz frequency range, covering acoustics, noise at work regulations, community noise, and environmental sound pressure levels.

Built-in A, C, Z, and LF weightings, Fast, Slow, and Impulse time weightings, and IEC 61260-1-compliant octave filters allow this compact instrument to handle both low noise background monitoring and impulsive noise tasks. Bluetooth® enables remote control and data review, while the 32 GB data logger stores high-rate time histories. The SV 971A provides up to 24 hours of battery life and maintains Class 1 accuracy from –10 °C to +50 °C and 10–90% RH, ensuring reliability in the field.

Advanced functions—RT60, STIPA, audio recording, and real-time analysis—are managed by dedicated software and a mobile app. The meter is fully type approved to IEC 61672-1 Class 1.

Class 1 Sound & Vibration Analyser SVAN 979

The SVAN 979 is Svantek's flagship Class 1 sound and vibration analyser, designed for experts who demand the highest precision, functionality, and flexibility in one professional instrument. Fully type approved and compliant with IEC 61672-1:2013, it delivers unmatched low-noise performance starting from 12 dBA and supports precision measurements down to 3.15 Hz. The instrument supports both sound and vibration inputs, making it ideal for multi-domain analysis with no need for external modules.

With virtually all advanced functions pre-installed, the SVAN 979 offers a turnkey solution for experts who require full compliance, high-resolution analysis, and robust data acquisition in one device. Priced from €7,000 upwards, it combines extreme accuracy, dual-domain flexibility, and comprehensive analysis tools—making it the flagship choice for demanding acoustic professionals and regulatory agencies.

Class 1 Urban Noise Monitoring Terminal SV 303

SV 303 is a next-generation Class 1 noise monitoring terminal engineered for precise, real-time urban sound assessment in smart city environments. The instrument ensures full compliance with IEC 61672-1:2013 and IEC 61260-1:2014 standards, delivering highly accurate measurements across a wide LAeq range from 30 to 130 dB.

Robust operation in temperatures from -20°C to 60°C and up to 95% humidity makes SV 303 ideal for year-round, multipoint monitoring in any urban climate. Seamless system integration via USB and UART interfaces enables flexible deployment and compatibility with existing environmental monitoring networks. Affordable, reliable, and easy to install, SV 303 empowers city planners and environmental managers to control noise pollution and create healthier, more livable urban spaces.

Class 1 Urban Noise Monitoring Terminal SV 303

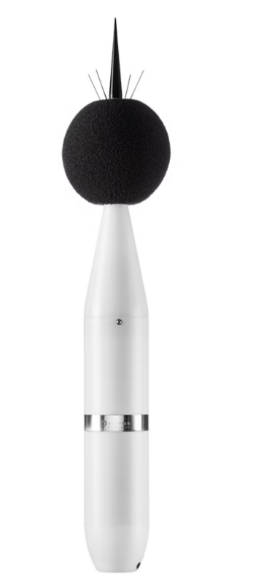

Noise Monitoring Station Class 1 SV 307A

SV 307A is a state-of-the-art, all-in-one Class 1 noise monitoring station engineered for permanent environmental noise monitoring in any weather. Featuring a patented MEMS microphone technology covered by a lifetime warranty, the SV 307A delivers reliable, accurate measurements and advanced diagnostics with automated system checks.

Robust construction protects the internal Class 1 sound level meter with integrated 4G and GPS modems, enabling real-time data transfer, live audio streaming, and remote alarms via SvanNET. The SV 307A provides complete measurement data—including noise levels, statistics, spectra, and triggered audio files—empowering users to monitor, predict, and respond to noise events efficiently, anytime and anywhere.

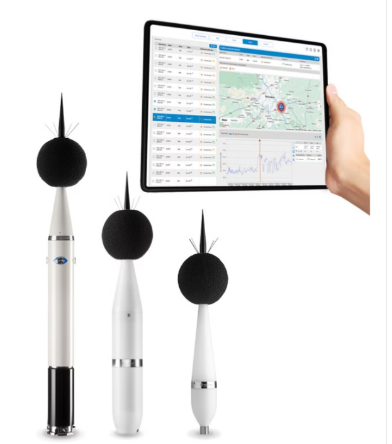

Automatic Monitoring Services SvanNET

SvanNET is an advanced online platform for automatic monitoring and remote management of Svantek's noise, vibration, and dust monitoring stations—including SV 307A, SV 200A, SV 803, SV 258 PRO, and SV 27x series. Hosted on Microsoft Azure™ for maximum security and reliability, SvanNET enables multi-point connection, real-time data preview, and secure data sharing through a fully customizable web interface.

SvanNET requires no software installation and provides instant access to monitoring results, configuration, and alarms on any device—anywhere, anytime.

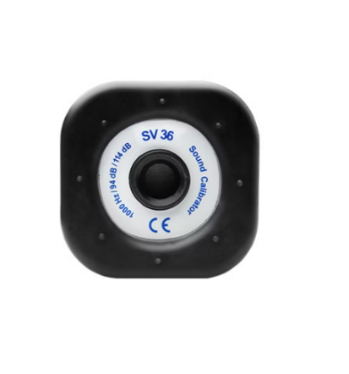

Class 1 Sound Calibrator 94 dB & 114 dB SV 36

SV 36 is a Class 1 acoustic calibrator, designed to verify sound level meters at 94 dB and 114 dB at 1 kHz in accordance with IEC 60942:2017. A built-in microprocessor and reference sensors (pressure, temperature, and atmospheric) ensure automated, accurate signal correction, eliminating the need for manual adjustments.

An infrared sensor detects microphone presence to switch the device on or off, making SV 36 ideal for fast, reliable calibration in professional noise monitoring.

Class 1 Building and Ground Vibration Monitoring Station SV 803

The SV 803 is a wireless Class 1 vibration monitor designed for reliable long-term measurements in accordance with British and international standards. Equipped with triaxial geophones, it delivers high sensitivity and extended battery life — ideal for unattended operation in demanding environments.

Using FFT analysis, the SV 803 identifies PPV dominant frequencies as required by BS and DIN regulations. It also supports 1/3 octave analysis of RMS or PEAK velocity spectra, allowing direct comparison with user-defined vibration limits.
